Problem:

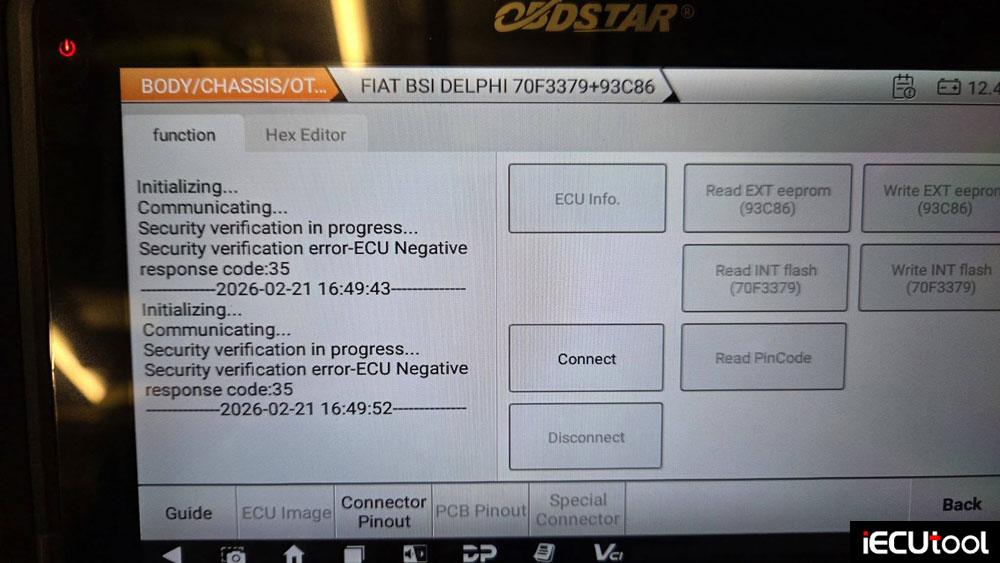

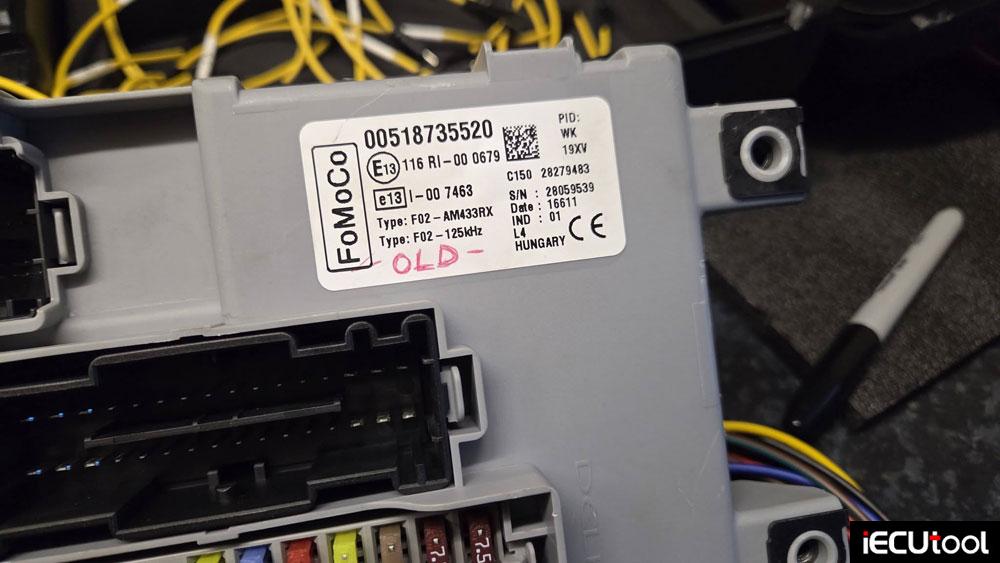

I’m having trouble reading this bsi off a Ford Ka (Fiat 500) with OBDSTAR DC706 on bench mode. Tried with and without 120 ohm, no luck. Any suggestions?
Solution:

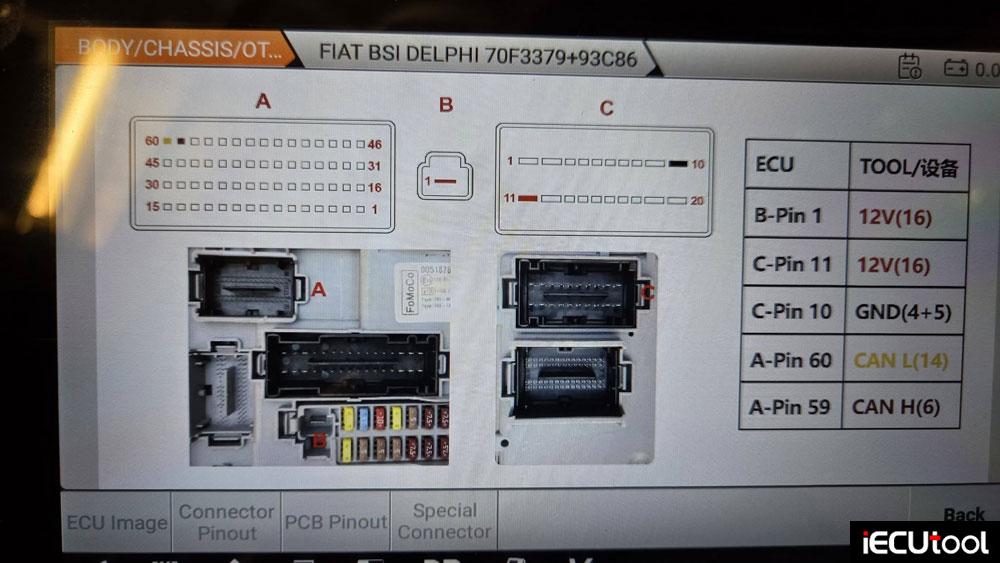

Select Ford BSI (Ford BSI Delphi 70F3379+93C86) rather than Fiat BSI. Don’t forget to connect a power supply.
Update:

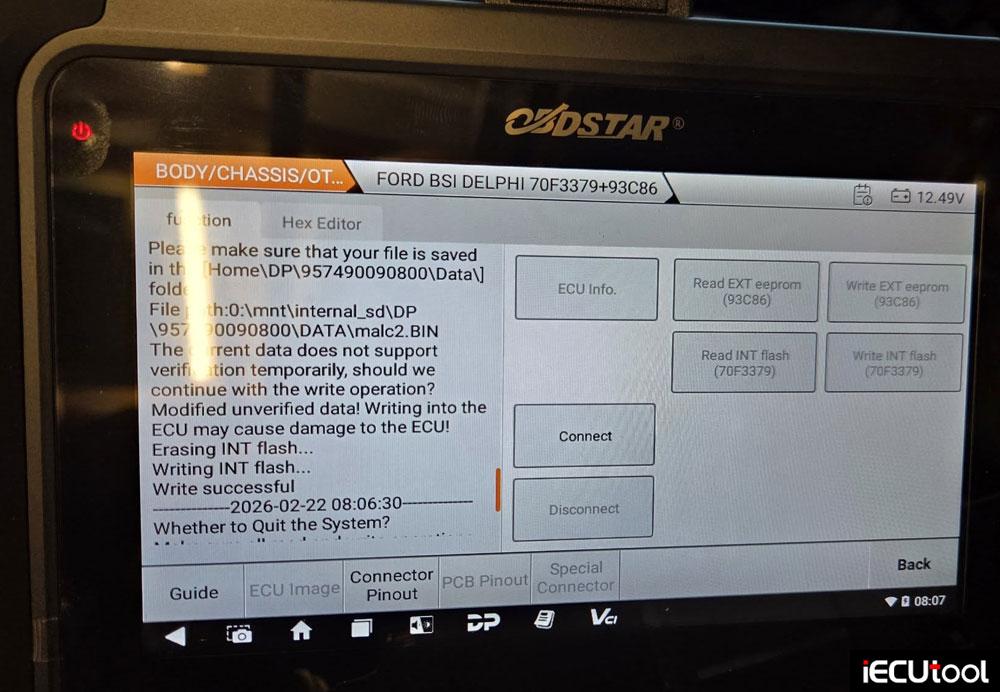

Fixed. Important to select Ford for a ka not Fiat, despite the chips being the same!
Worked fine when selecting as Ford.
