OBDSTAR G3 Read and Write Peugeot DCM6.2C ECU, DTC OFF

By | December 1, 2025

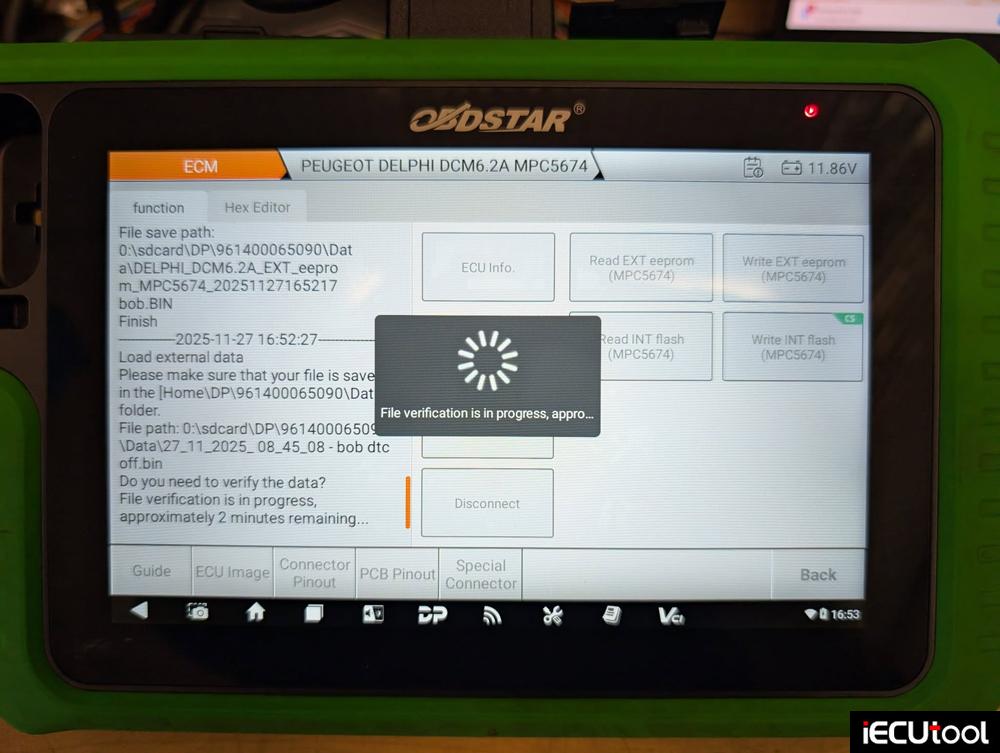

OBDSTAR X300 Classic G3 worked very well today, had to do DTC off on a Peugeot boxer dcm6.2c.

ECU type: DCM6.2C

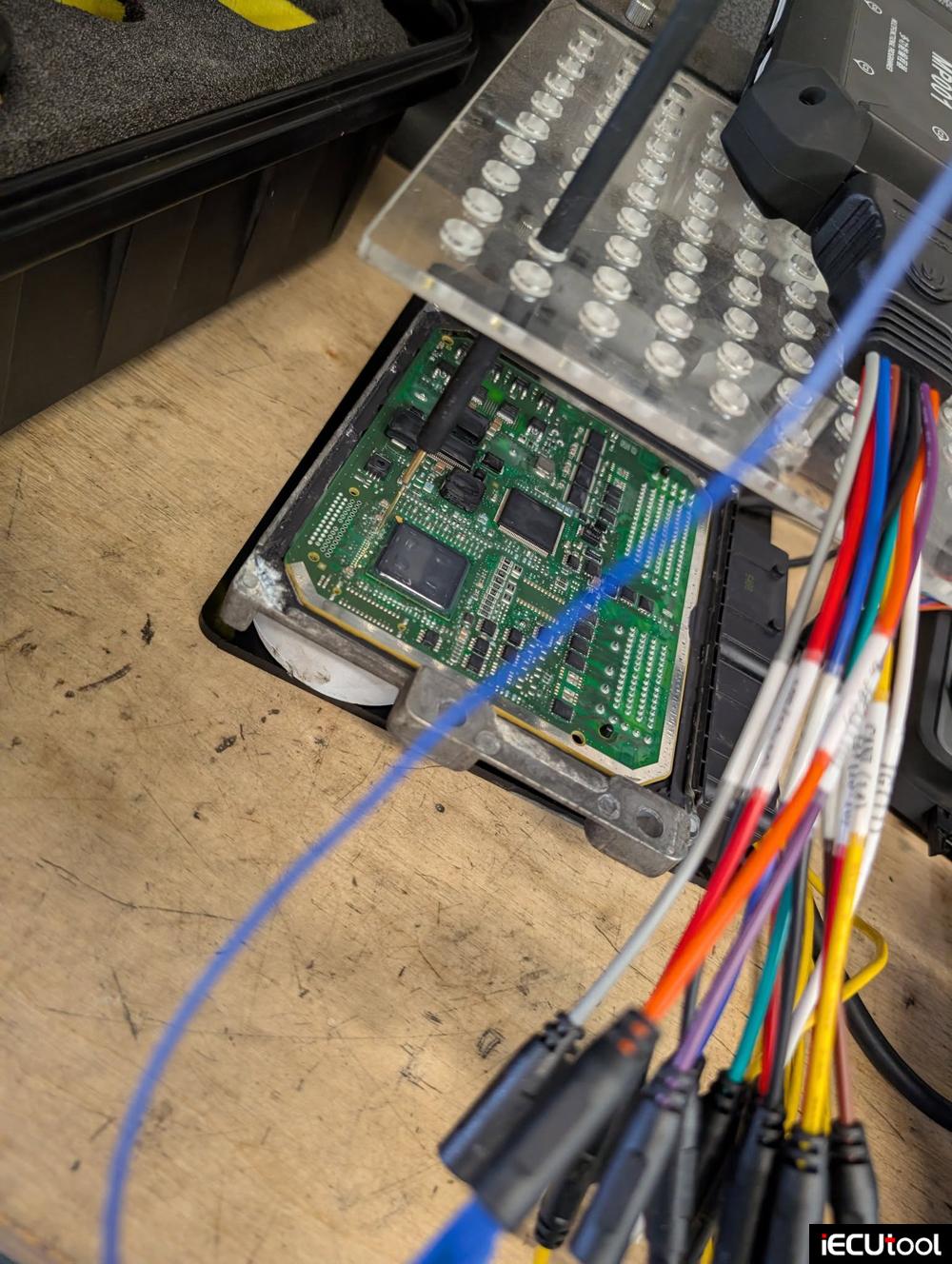

Mode: Boot mode.

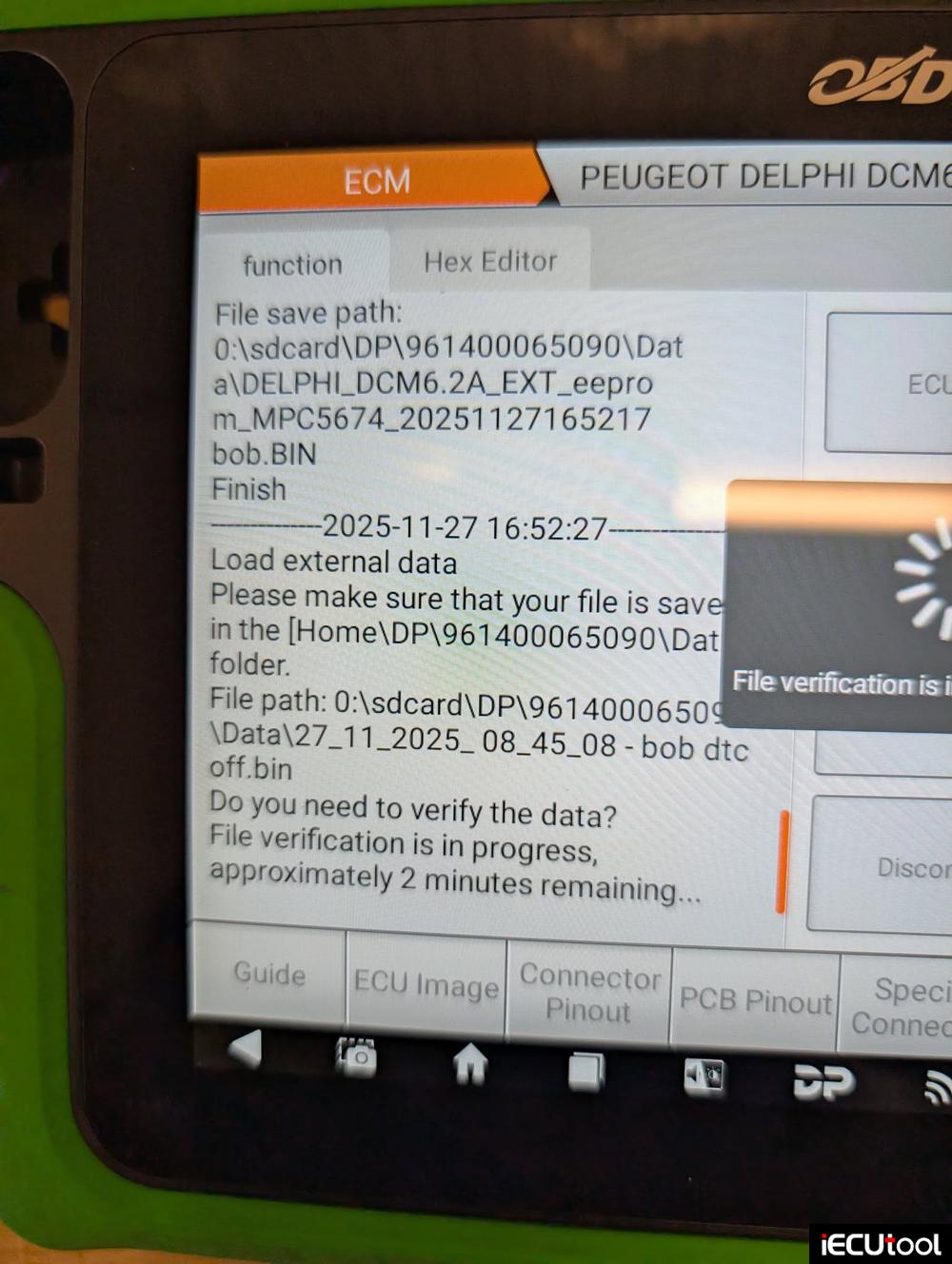

Read ext eeprom and int flash ok.

Write eeprom and flash ok.
Only had DCM6.2A listed but I know the pin out is the same.

Worked great with fast read and write and even did the checksum correction.

DC706 will do the same in boot mode.

OBDSTAR G3 Peugoet DCM6

OBDSTAR G3 Peugoet DCM6.2C ecu 2 OBDSTAR G3 Peugoet DCM6.2C ecu 3 OBDSTAR G3 Peugoet DCM6
