It’s a BMW 3D 184hp with Bosch EDC15C4 ECU.
Tried Foxflash Full mode but not working(connected everything as shown, measured cables, resistors, outputs everything with multimeter and it’s 100% fine but still no connection) – ERROR SEND WAKE.

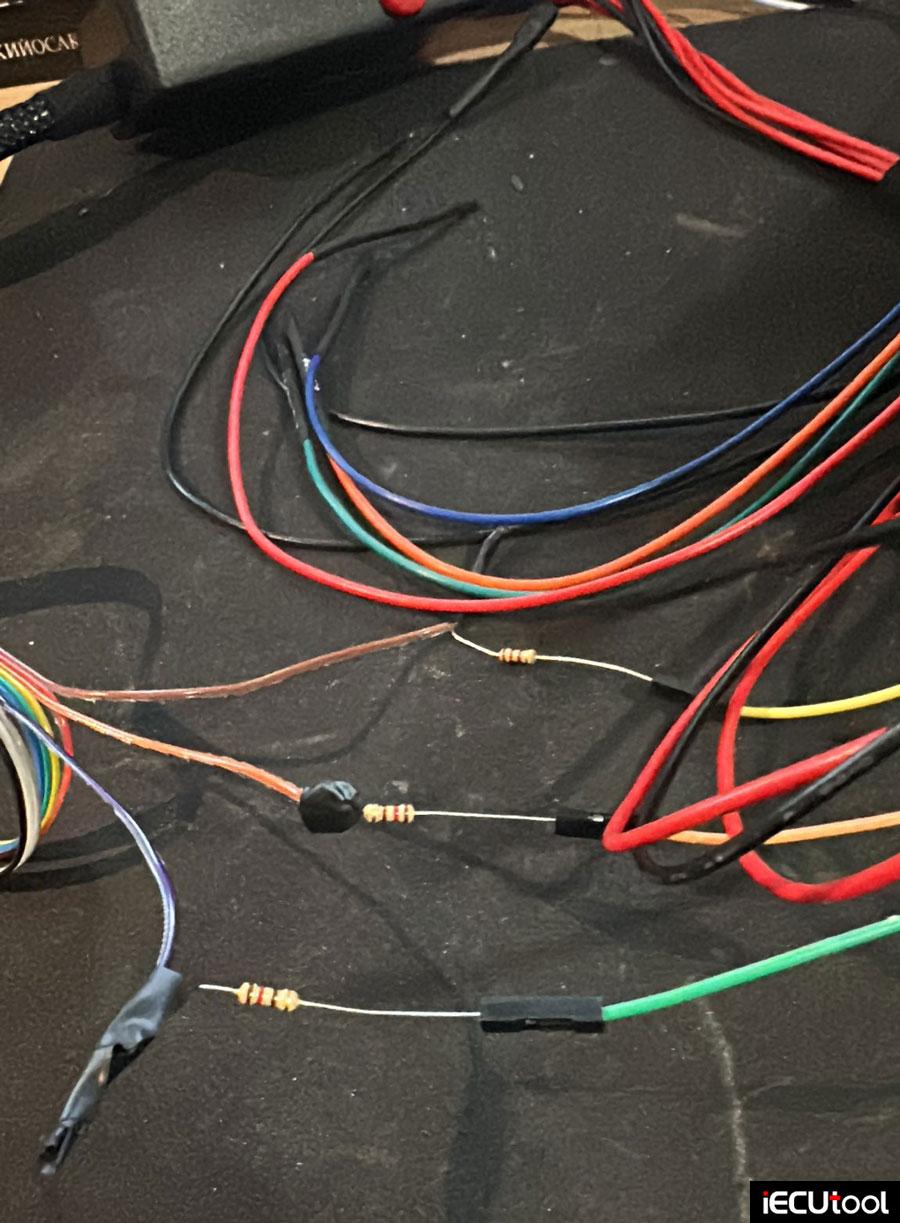

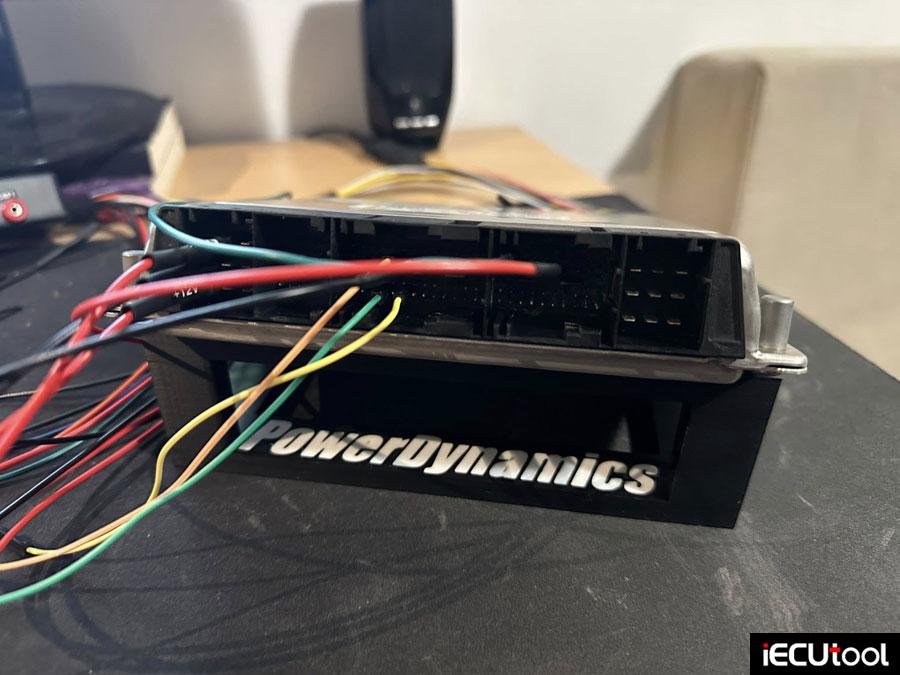

Simulated OBD on BENCH via K-LINE ok.
READ – 5 min
WRITE – 2 MIN
ONLY FLASH PARTIAL READ!!
Checksum with winols.

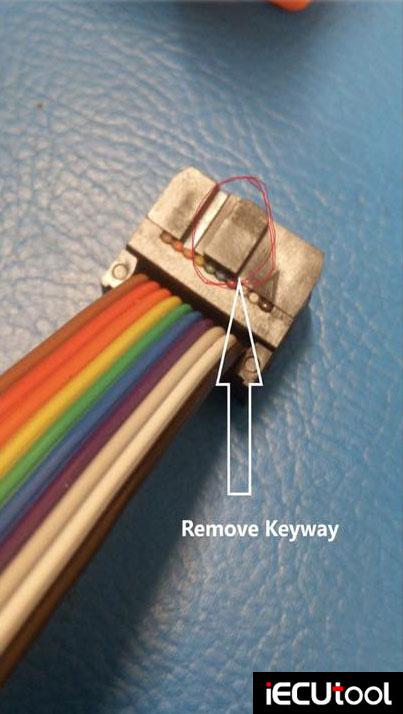

If need to do it via full system mode, need to fix the colored rainbow cable!
Problem is rainbow cable inverted, you need to fix the cable.
